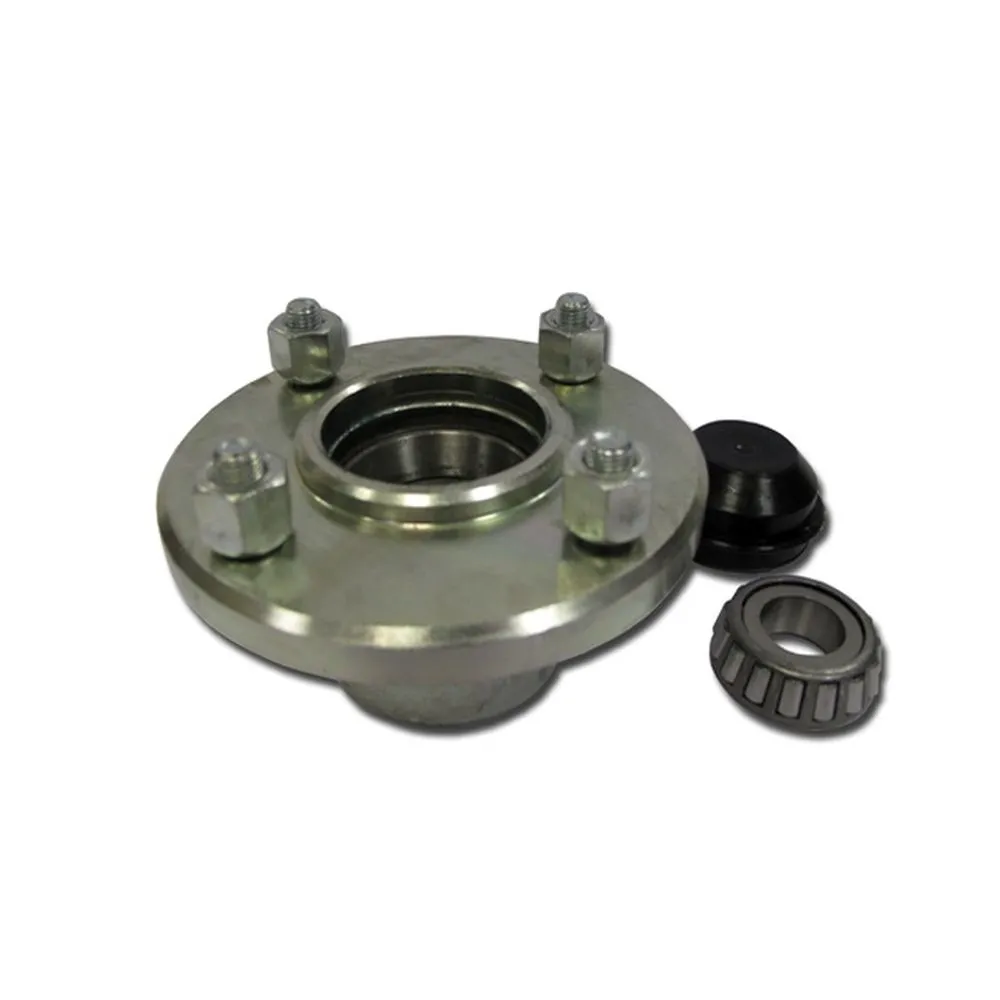

Indespension HU003 Un-braked Hub for Mini Wheels/Mini Stub Axles

• To fit 10 inch genuine Mini Wheels with the large outside offset
• 4 wheel studs with 4" (101.6mm) PCD (please see attached picture for measurement details)
• Fits Mini stub axles/trailer suspension units with Mini size stub axles
• To suit axles up to 550kg capacity
• Made from cast iron
• Complete with bearings, grease cap, wheel studs (already fitted) and wheel nuts

Specification

• Load Capacity - For axles up to 550kg capacity
• Number of Studs - 4
• Stud/Nut Size - 3/8"
• Stud Pattern - 4" PCD (Pitch Circle Diameter)
• Stud/Nut Recommended Torque - 57Nm (42 lb/ft)
• Outer Bearing - 07087X
• Inner Bearing - 07087X
• Oil Seal - SC20013731
