PRODUCT DESCRIPTION:

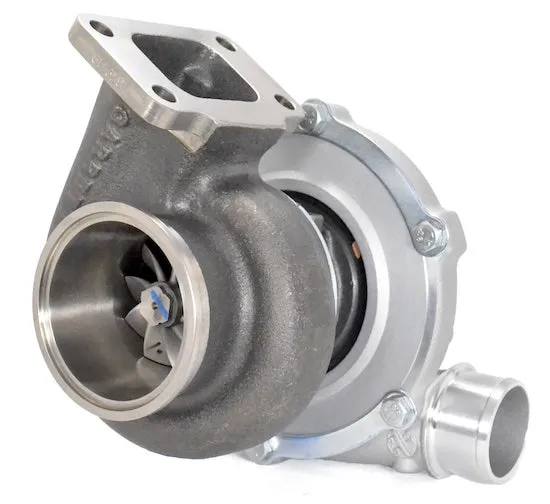

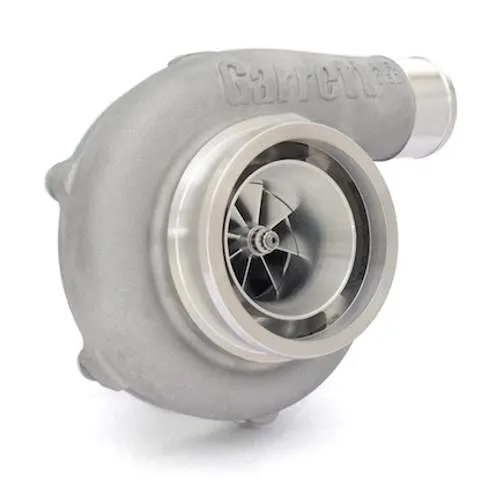

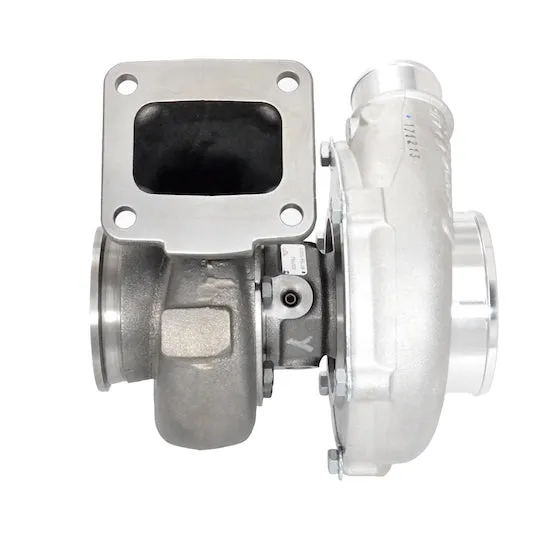

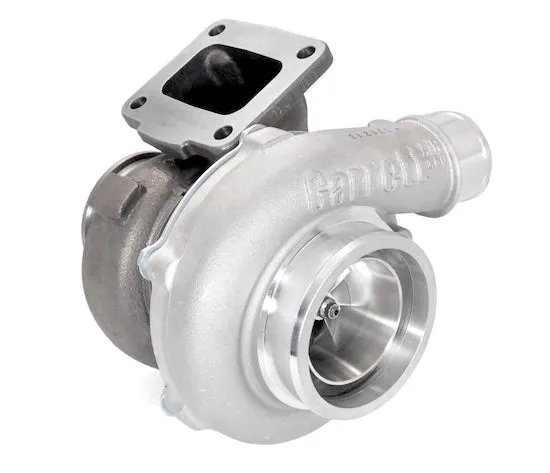

Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T4 Inlet, 3 Inch "GT" V-Band Conical Outlet (81mm centering ring), .82 A/R Turbine Housing (ATP-HSG-045). Advanced GEN2 billet compressor wheel capable of 650HP!
PRODUCT FEATURES:
Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Dual ball bearing CHRA rotating assembly
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 54mm
Compressor Wheel Exducer: 71mm
Compressor Wheel Trim: 58
Compressor Housing: T04E Frame, 4" inlet and 2" outlet, Gen2 Anti-Surge Porting
Compressor Housing A/R: 0.60
Turbine Wheel Inducer: 60mm
Turbine Wheel Exducer: 55mm
Turbine Wheel Trim: 84
INSTALLATION HARDWARE:
Coolant - Water Options (*Please call for assistance*)
Oil feed fitting with .035" restrictor:
Oil drain flange:
Oil drain gasket:
8mm x 1.25 (thread pitch) Stud:
8mm x 1.25 (thread pitch) Locking Head Nut:
T4 Inlet Flange (for Turbo Manifold):
T4 Inlet Gasket:
V-Band "GT" 3 Inch Outlet Flange (for Downpipe):
V-Band Outlet Clamp:
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
