Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Contact Form | 3PST-NO |
| Contact Material | Silver Alloy |
| Current Rating | 55 A |
| Dimensions | 73.5mm L x 103mm W x 41mm H |
| Function | Zero-Switching |
| Insulation Resistance | 1000 Megohms |
| Mounting Type | DIN Rail |
| Number of Pins | 8 Pin |
| Operating Temperature | -30 to 80 °C |
| Product Description | A solid state relay family designed to switch various loads such as heating elements, motors and transformers. The relay is capable of switching high voltages up to 600 VACrms. The built-in varistor secures transient protection for heavy industrial applications. For higher reliability and load cycle capability three semiconductor power units are soldered directly on to the direct copper bonded (DCB) substrate. AC- or DC-controlled versions are available. Built-in LED status indication for applied control voltage and over-temperature alarm (optional). A version that can be controlled with 5 VDC @ 15 mA (max) is also available (LD). The Series covers a range of load currents up to 75 AACrms. |

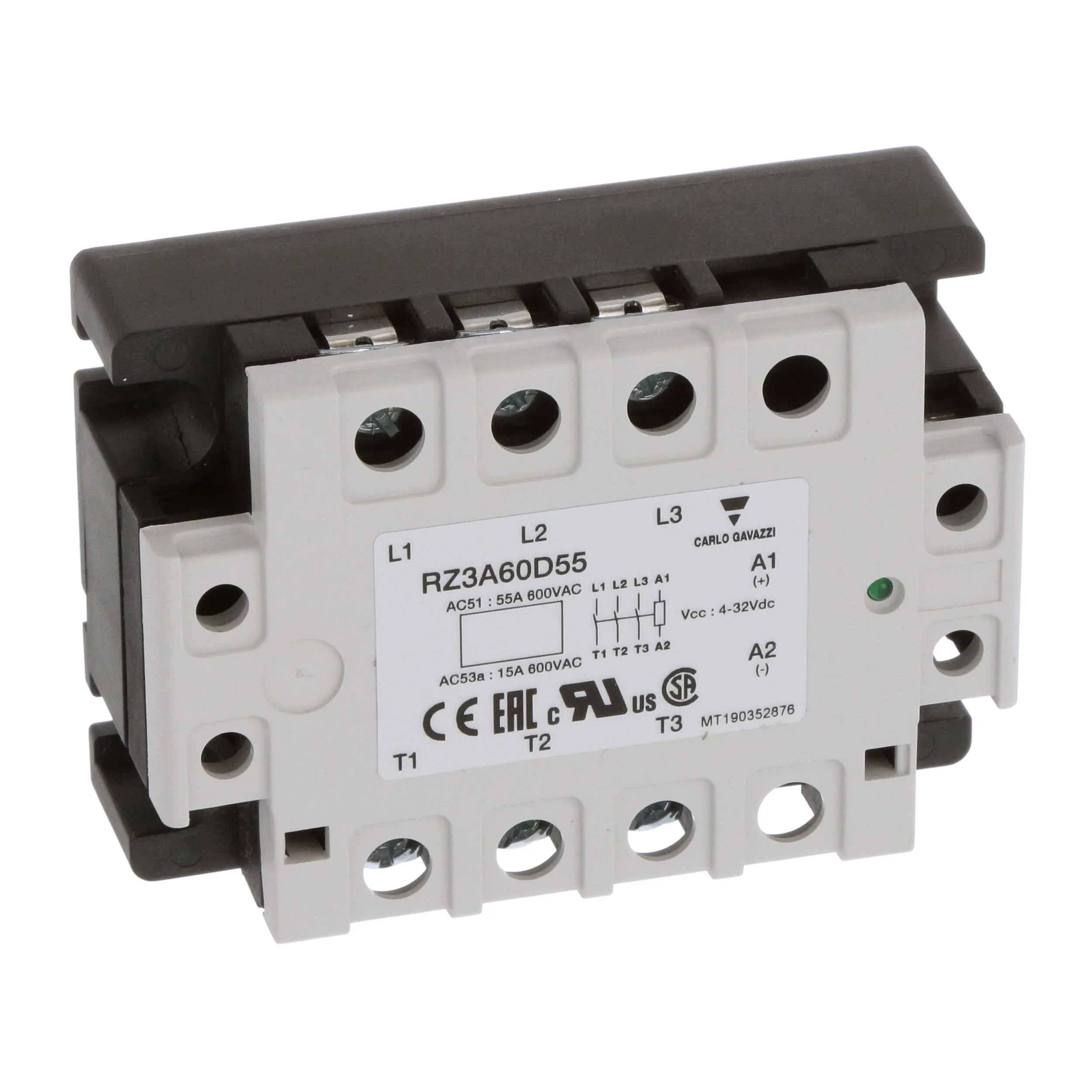

| Product Header | Zero Switching Solid State Relay |
| Relay Type | Solid State Relay |
| Standards | cUL ; UL ; CSA ; CE |
| Termination | Screw |
| Voltage Rating | 600 VAC |
| Voltage, Control | 32 VDC |
Overview
3-Phase, -30 °C to 80 °C Operating Temperature, Solid State Relays Industrials
Three phase zero switching solid state relays for resistive loads (heater bands) and inductive loads. Optional pilot duty switch. Optional temperature protection and alarm output. UL recognized, CSA certified and CE approved.
