• Does NOT include C4 Hawse License Plate Mount for front license plate; if needed please
• For Powder Coating within Canada please
• Hawse mount not compatible with Factor 55 Flatlink or Ultrahook

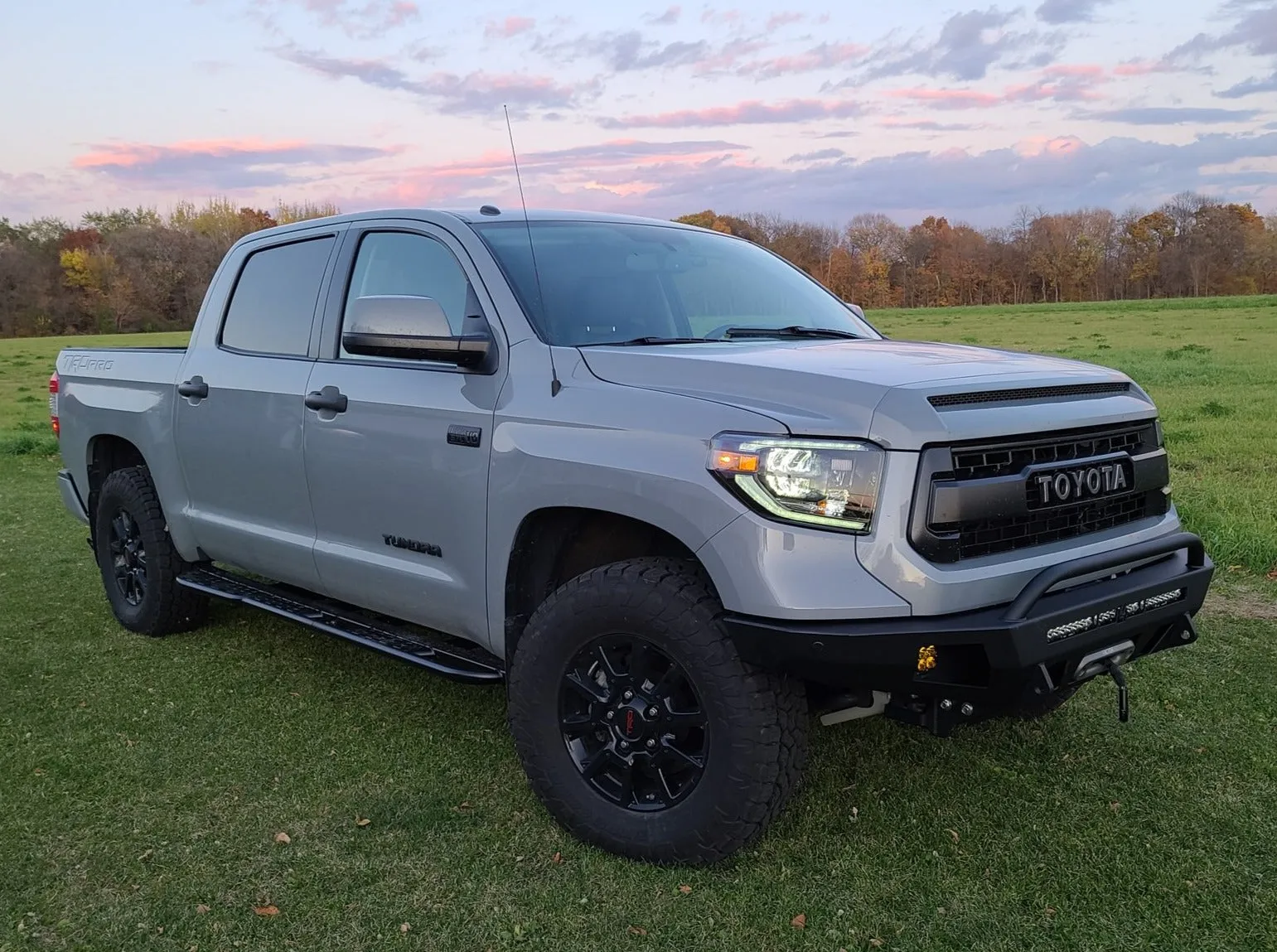

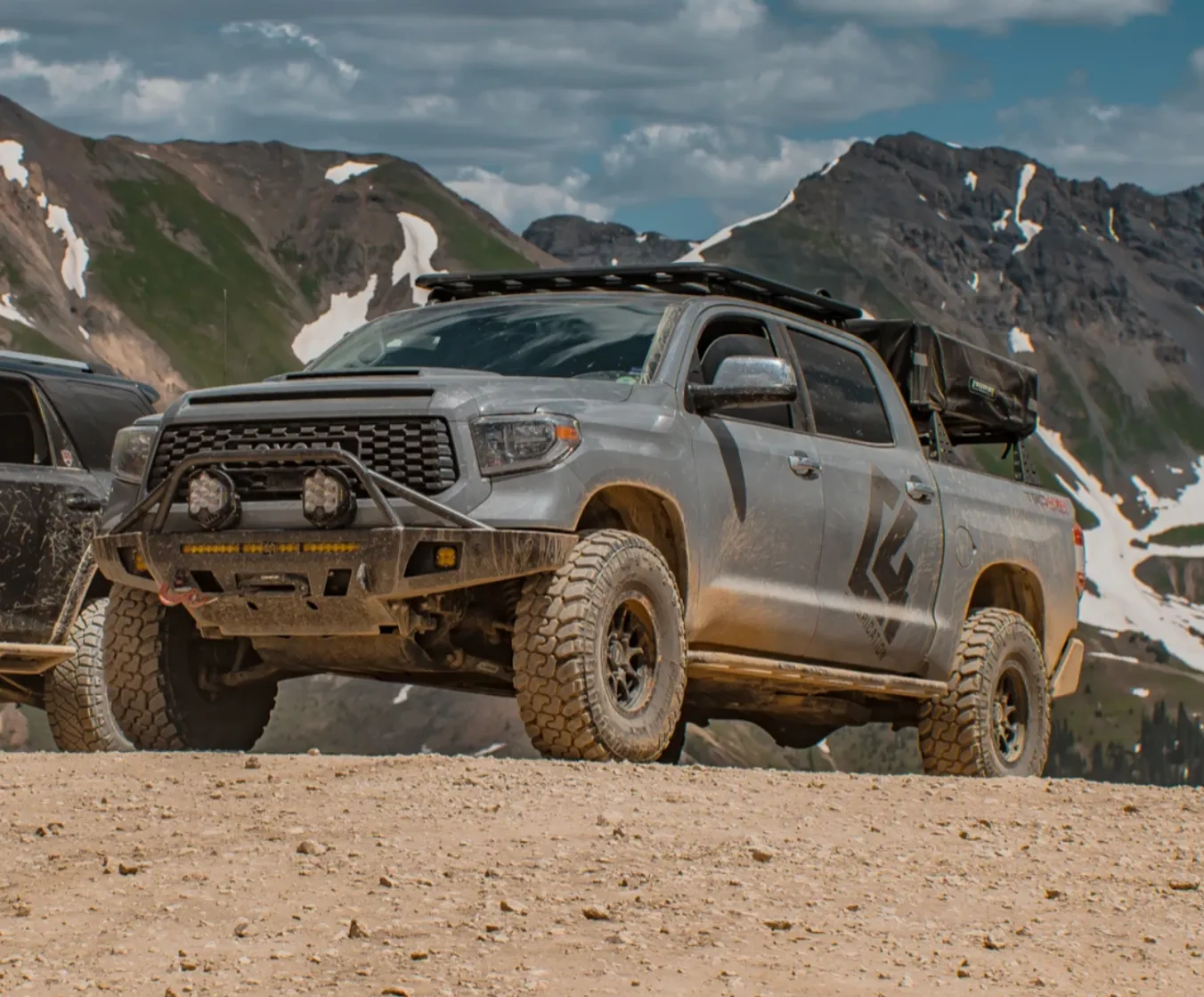

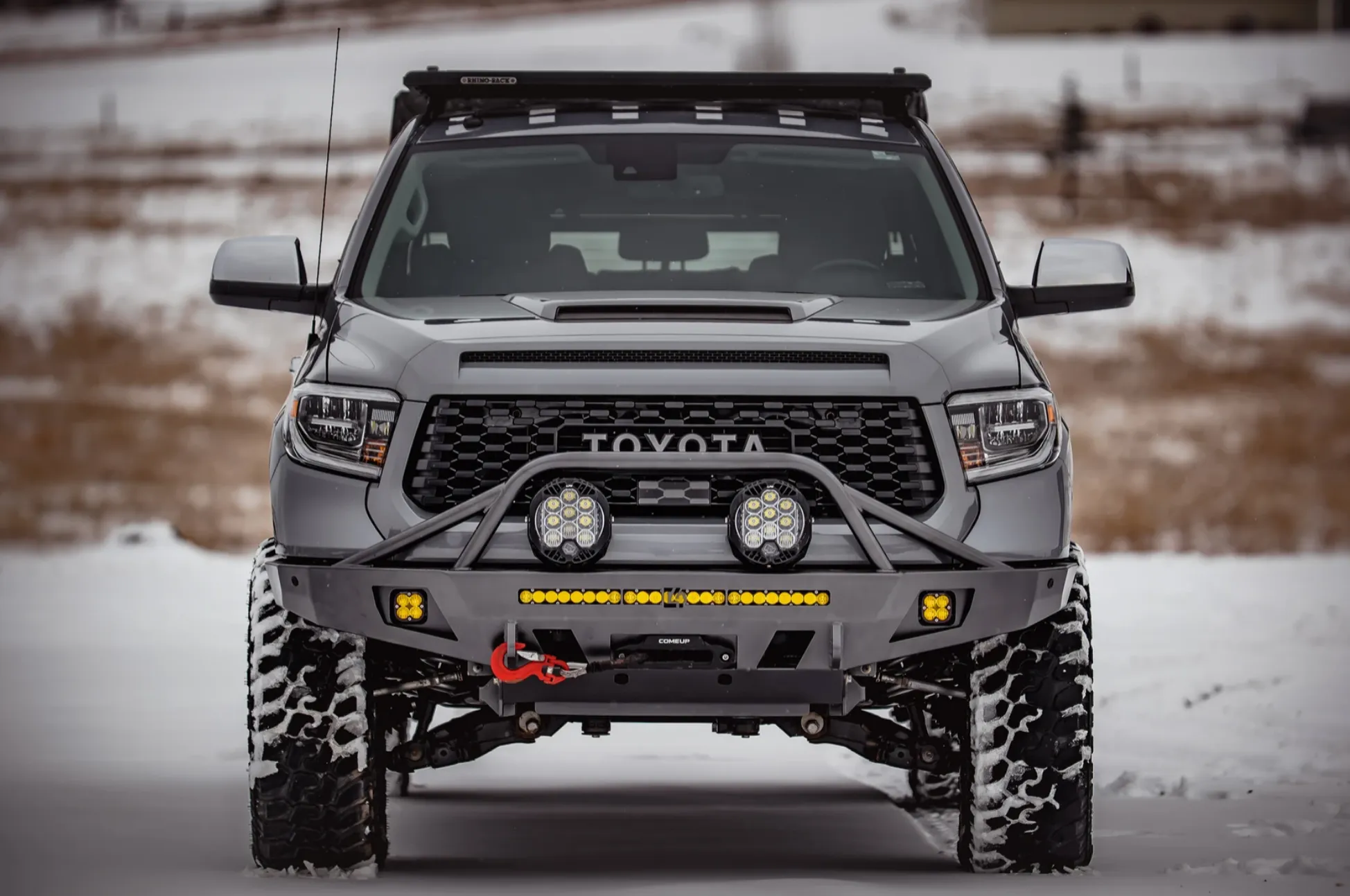

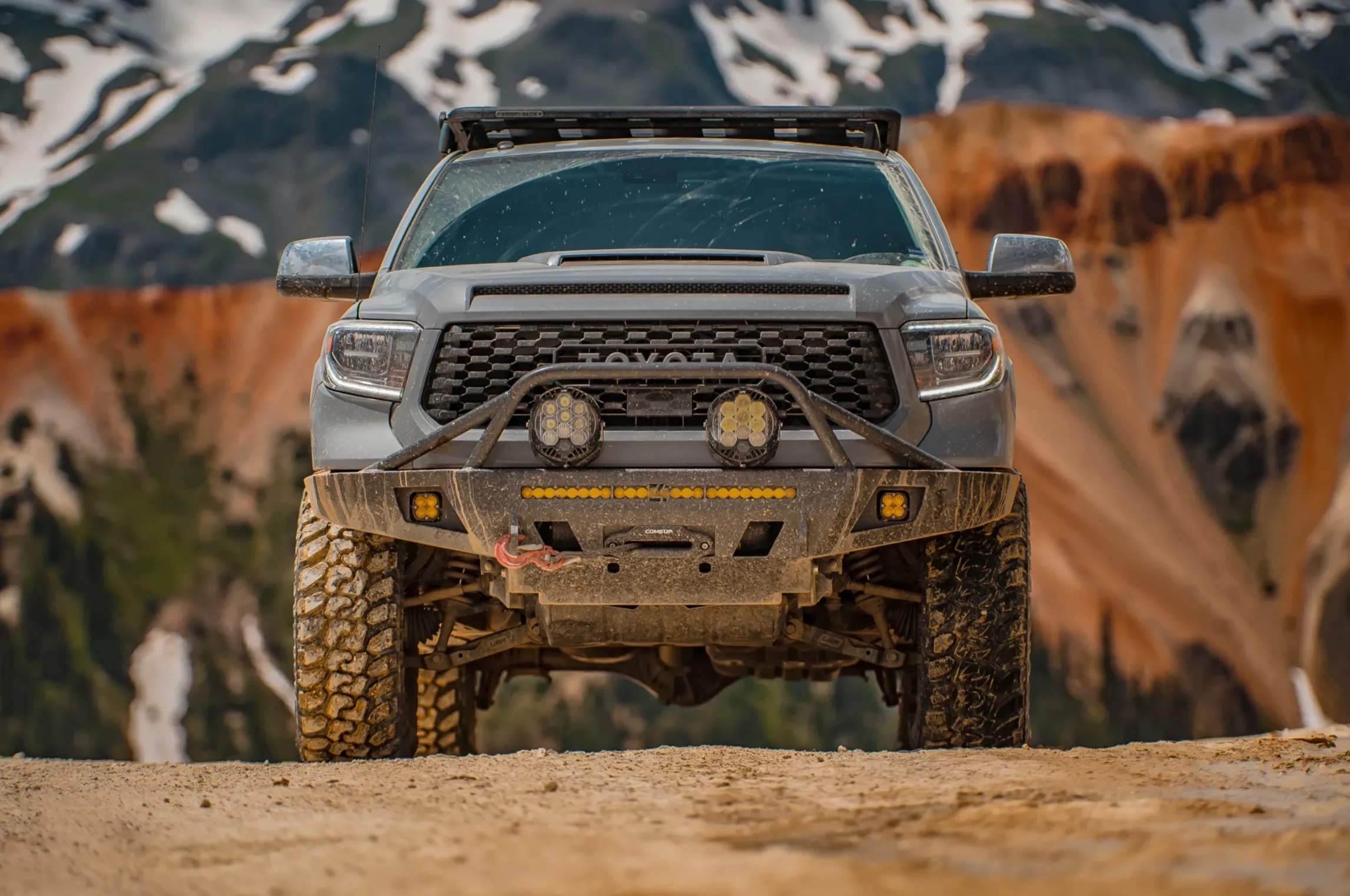

• C4 Fabrication's 2014 Tundra Overland Front Bumper offers more clearance for better approach angles, and makes it easier to fit larger tires.
• This bumper is a direct bolt-on application. No cutting or modifications needed.
• The bumper is made from 3/16″ laser-cut P&O steel with 3/8″ thick mounting plates and 1/4″ thick winch plate.
• 3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
• Bull bar tubing is .120 wall 1 3/4″ diameter HREW tubing.
• Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit.(Smittybilt X20, Warn Zeon and VR series are all common winches that fit).
• We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
• Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar).

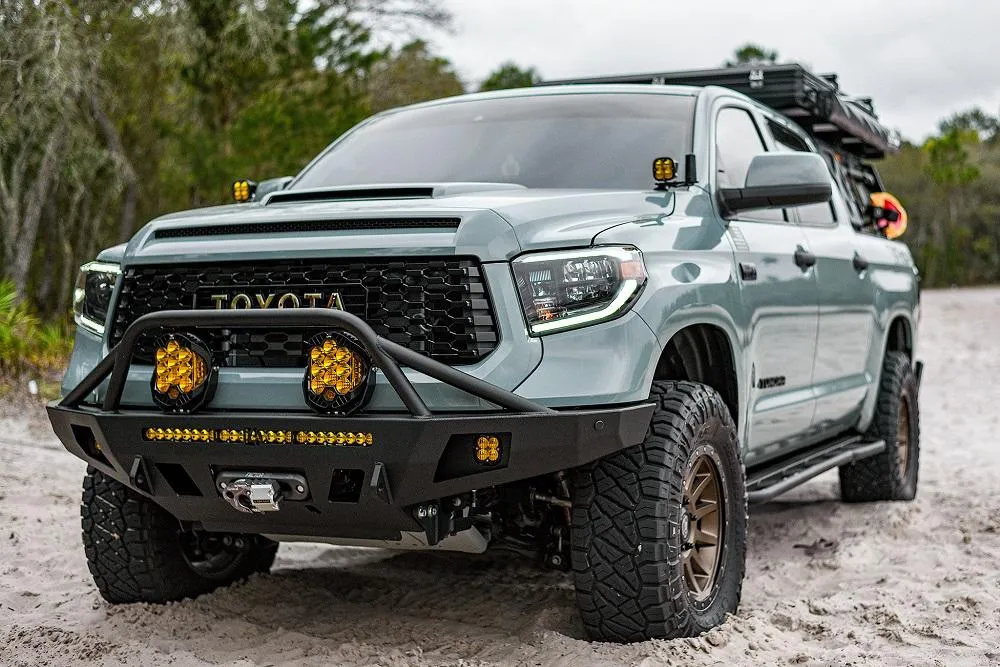

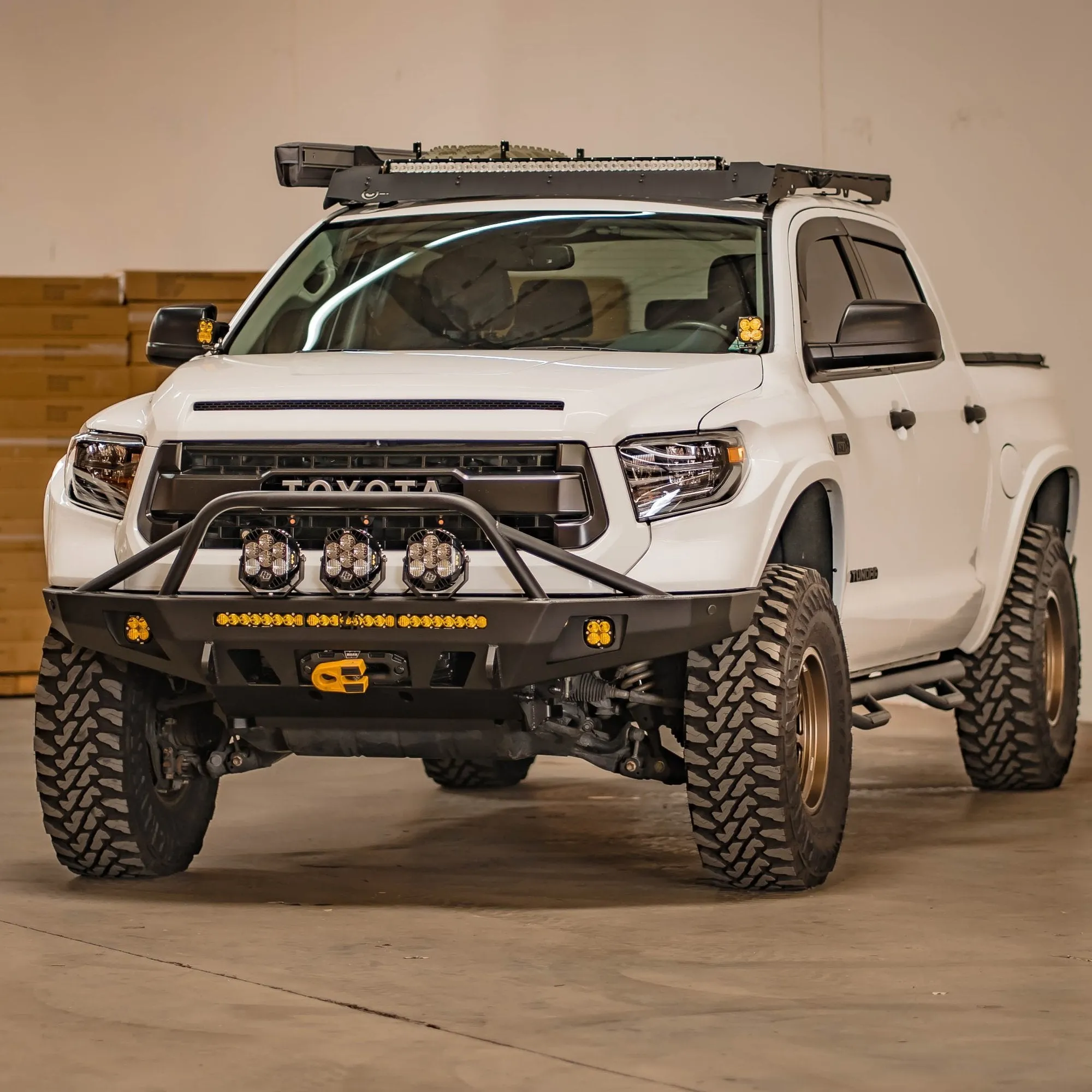

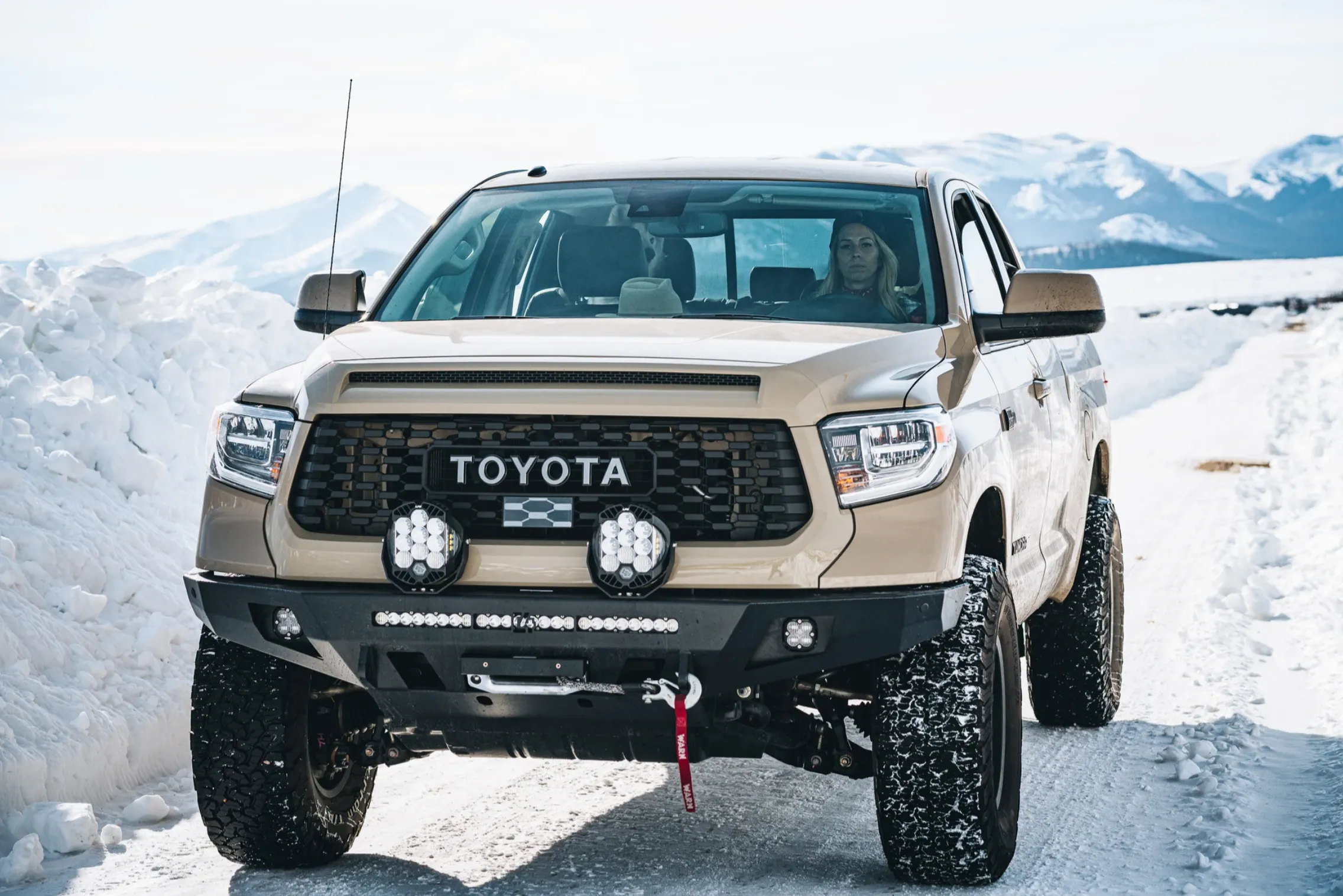

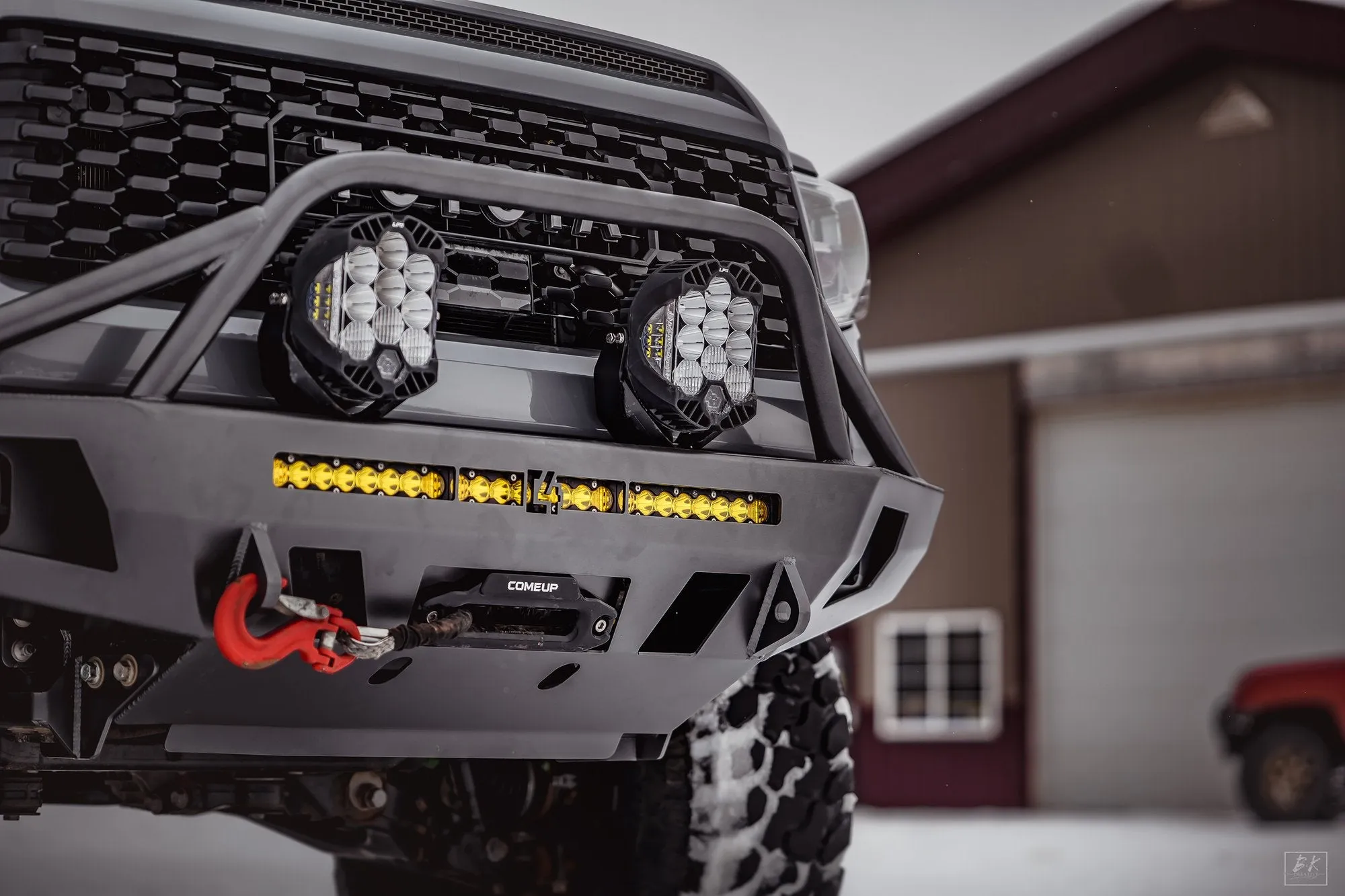

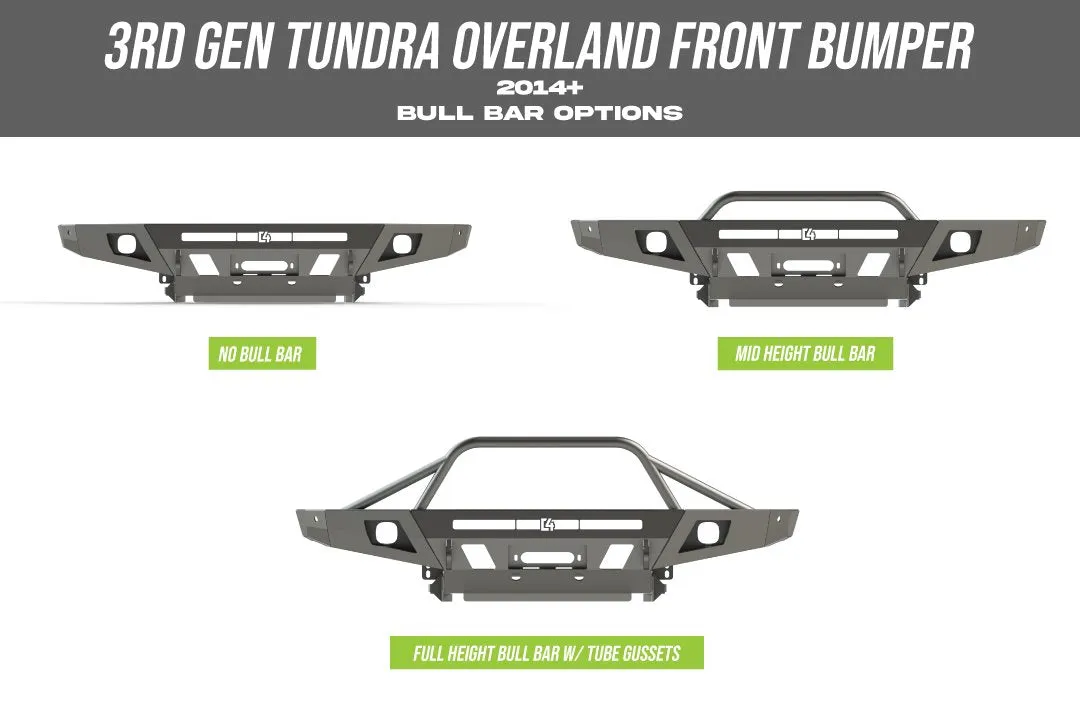

• The bumper comes pre-drilled for a pair of Baja Designs LP9 or LP6 lights to mount on top of the bumper, in front of the grille. The LP9 lights will work with the Full Height Bull Bar, as well as No Bull Bar. (See first 5 pictures for reference)
• Works with TRD Pro, and aftermarket skid plates.
• Comes with holes for parking sensors.
• Not compatible with Factor 55 Flat Link or Ultra Hook
• Weight:

• No Bull Bar: 165lbs
• Full Height Bull Bar: 180lbs
• Toyota Safety Sense (TSS) Compatibilty:
• Mid Height Bull Bar is compatible with all models
• Full Height Bull Bar works with TRD Pro grilles only. Models with regular grilles are not compatible.

*Powder coating available once landed at our shop, ships as bare steel*

Contact the store, or [email protected] so we can help you get the right bumper for your build!

*Powder coat only available within Canada
