DESCRIPTION

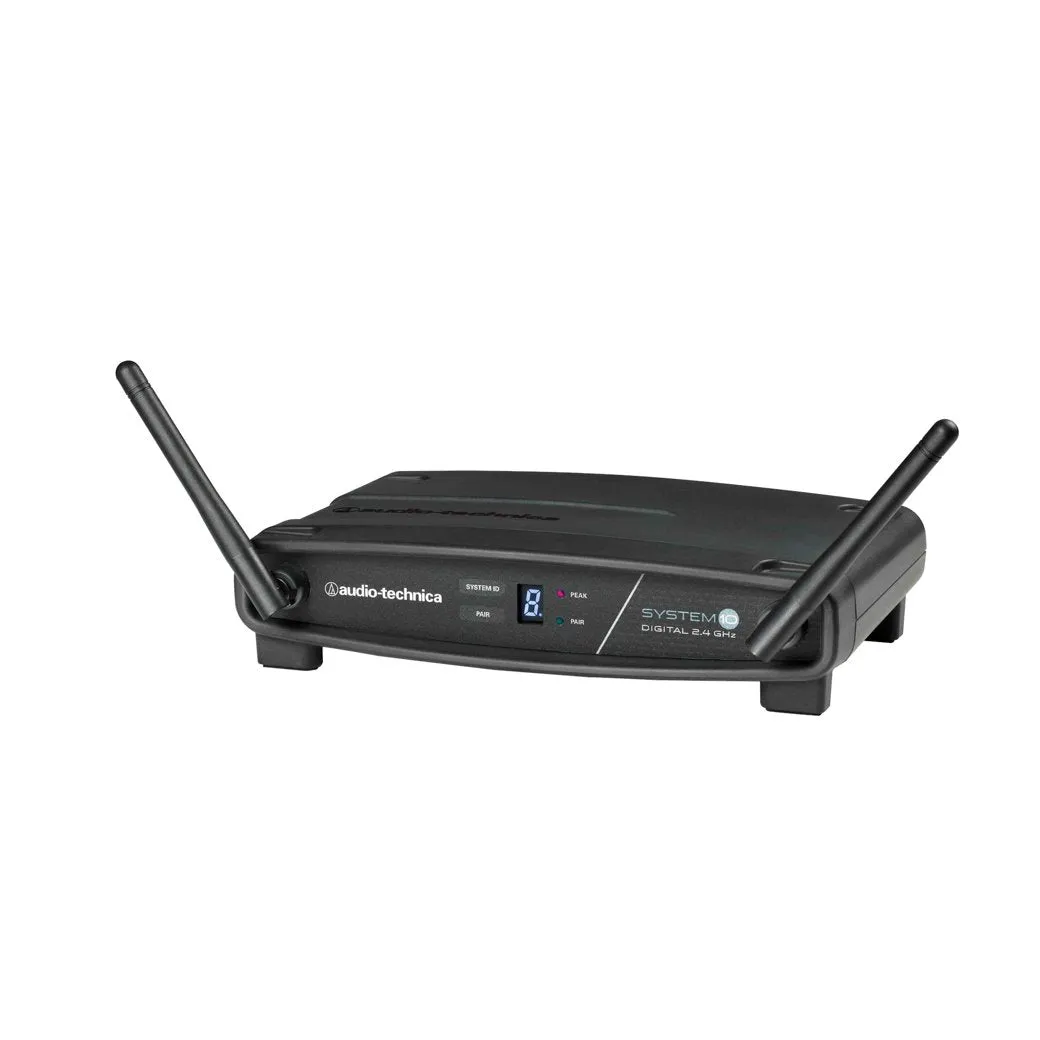

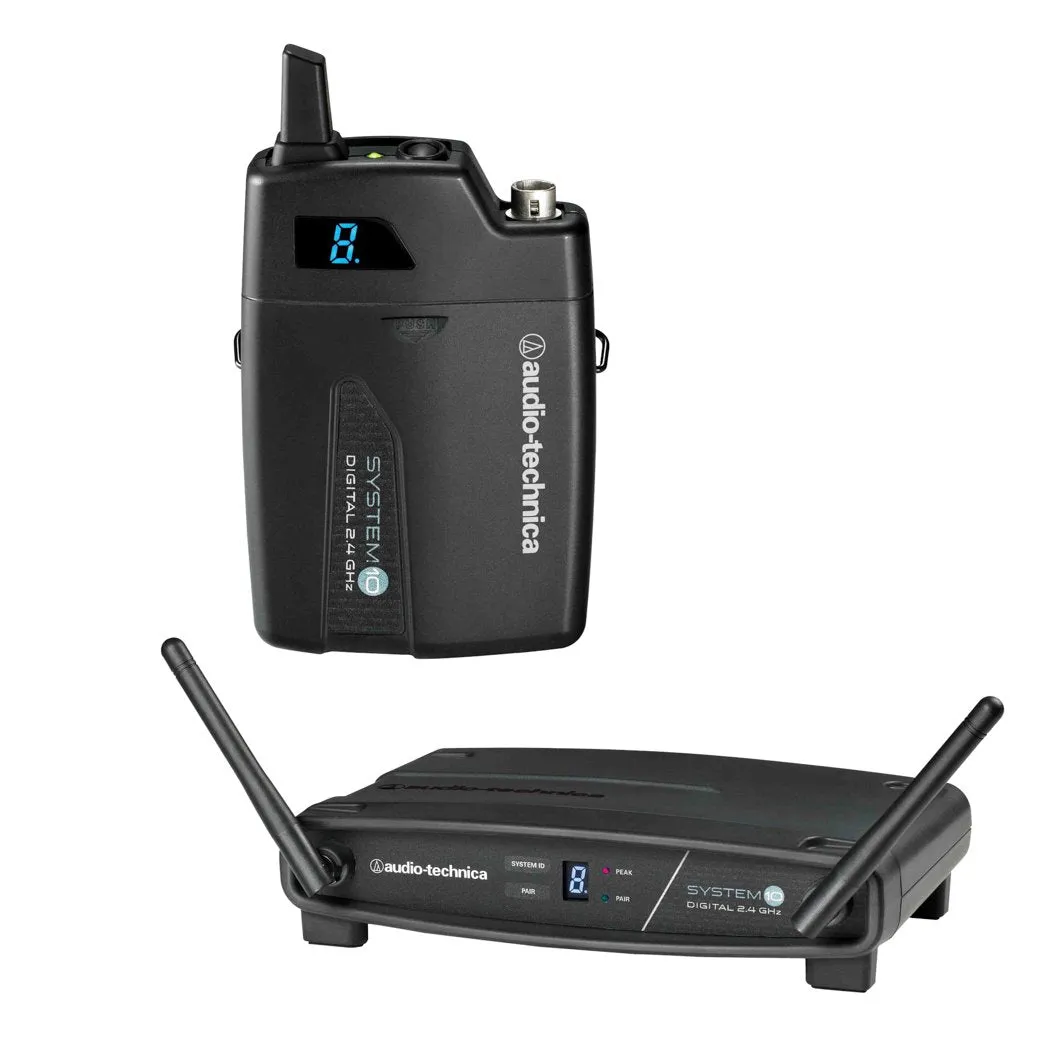

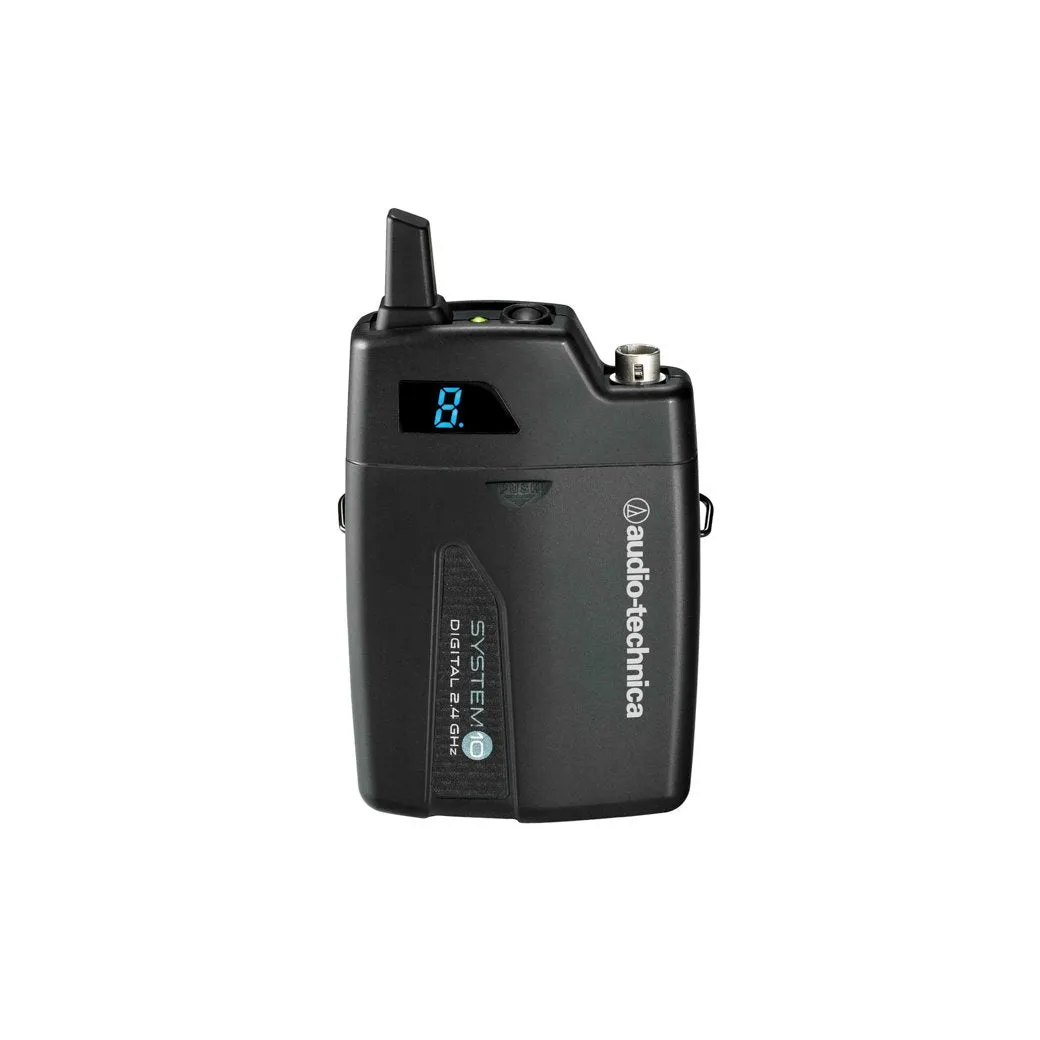

Audio-Technica’s System 10 is the most reliable digital high-fidelity wireless system of its generation. Designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Featuring stackable, contemporary styling, each configuration includes a mono ATW-R1100 receiver and an ATW-T1001 body-pack transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

The System 10 continuously monitors the activity in the 2.4GHz band and automatically adjusts the best signal in case of interference with WLAN routers, Bluetooth devices or other HF microphones. The 2.4 GHz frequency band keeps you away from licensing or frequency coordination issues, or frequencies used by DTV and 4G.

The System 10 automatically changes its frequency. Unlike other systems on the market that attach to 2 or 4 frequency, the System 10 will constantly "monitor" the frequencies and switch if necessary. Thus, there are always a good 2 frequencies in the system, and the user does not need to manually intervene.

CHARACTERISTICS

• System

• Simultaneous Channels: 8
• Analog/Digital: Digital
• Frequency Response: 2.4GHz
• Operating Range: Line of Vision
• Frequency Response: 20Hz-20kHz
• Microphone Included: Yes
• Channel Selection: Auto
• Instrument Cable: Connector 1 1/4"
• Instrument Cable: Connector 2 Hirose 4-pin

• Transmitter Form Factor
• Dynamic Range: 109dB (A )
• Antenna Type: Fixed 2 x AA
• Battery Type: 7 hours
• Connector: Hirose 4-pin
• Dimensions: 2.76" x 4.21" x 0.98"
• Weight: 0.22 lbs.


• Receiver
• Antenna Type: Fixed
• Front Panel Screen: Yes
• Displays: LED
• Board Type: Table Top
• Outputs: 1 x XLR, 1 x 1/4"
• Dimensions: 7.48" x 1.82" x 5.06"
• Weight: 0.64 lbs.


• Manufacturer Part Number: ATW-1101
